SugarCRM install package for Lotus Foundations – Installation guide

Here we explain how to install the SugarCRM (CE Version 6.0) install package to Lotus Foundations.

You can download “SugarCRM CE Version 6.0” install package for Lotus Foundations from here.

After you complete the installation below, you might be also interested in here for setting up your SugarCRM with Setup Wizard.


  1. Download the SugarCRM package file from here.
  2. Copy the “ext-sugarcrm-CE6.pkg” file to autoinstall folder of SugarCRM.

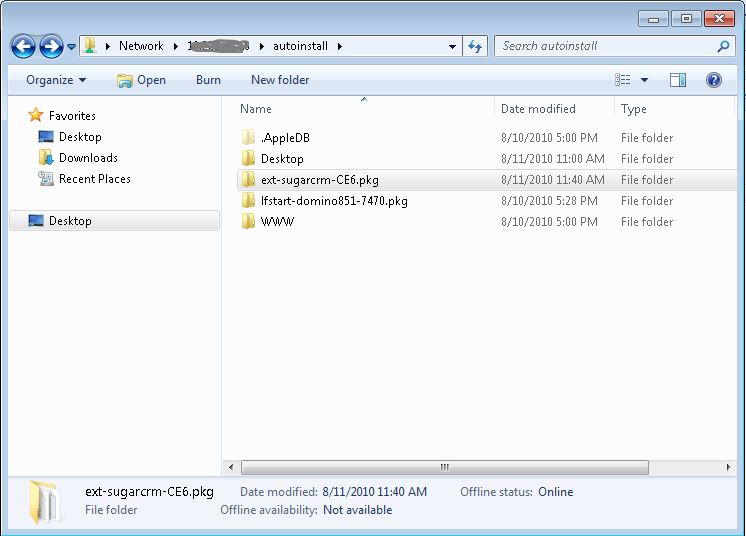

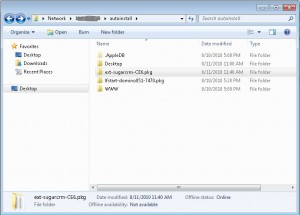

    Put the package file to autoinstall folder

    Put the package file to autoinstall folder

  3. Go to Lotus Foundations Web Config page.
  4. Click “Software Update”.
  5. Click “Add-ons” tab.
  6. Click “All Available Packages” from “Add-ons” page.
  7. Click “Next Page” arrow until you can find “SugarCRM CE6.0 Addon (On Disk: Team autoinstall/ext-sugarcrm-CE6.pkg)”

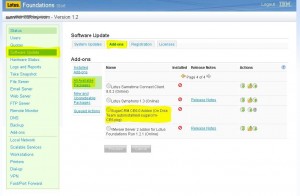

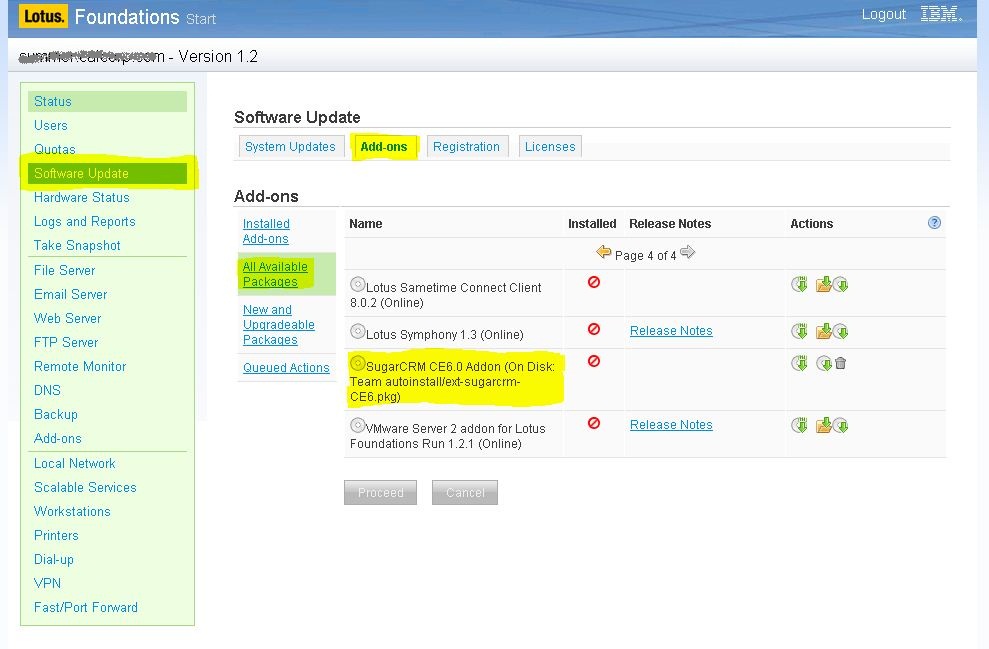

    Find Package from Add-ons page

    Find Package from Add-ons page

  8. Click “Quick Install” button from “Actions” on right side.
  9. Installation starts. If nothing appears, Click “Software Update” link from left navigation.

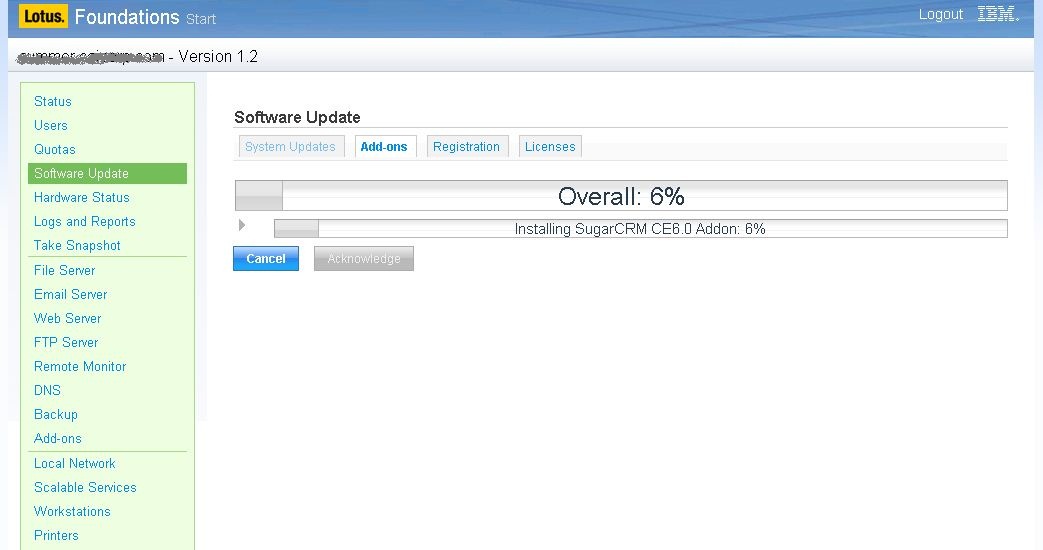

    Progress of installing SugarCRM PHP

    Progress of installing SugarCRM PHP

  10. After installation finish, click “Acknowledge” button.

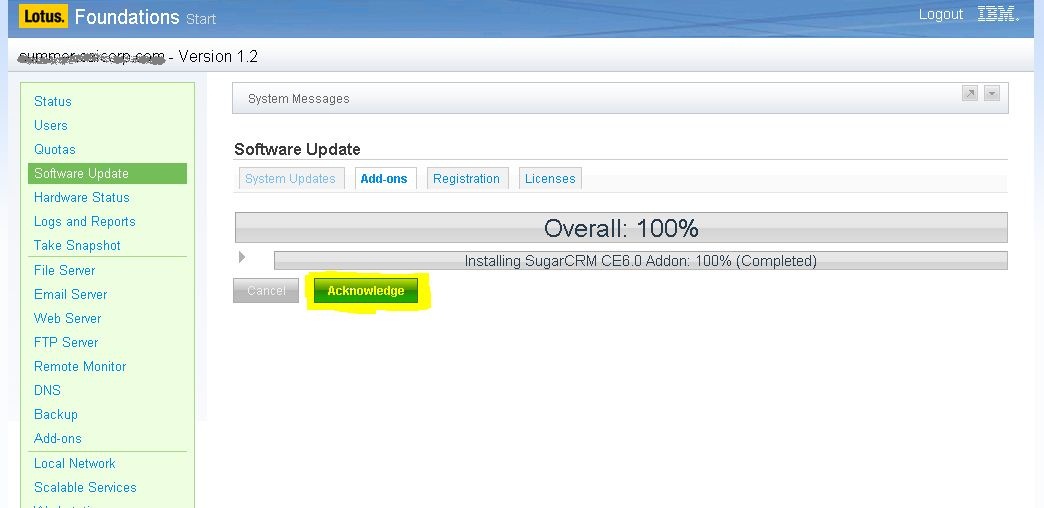

    Finishing installation of SugarCRM core

    Finishing installation of SugarCRM core

  11. Go to “Web Server Setup” page by clicking “Web Server” on left navigation.
  12. Confirm your web server configuration is like below
    Web Server: [Enable] or [Only Trusted Hotes]
    Secure Web Server: [Enable] or [Only Trusted Hotes]
    MySQL Server: [Enable]
    Users’ personal home pages: [Enable] or [Only Trusted Hotes]
    Content filtering: [Disable]

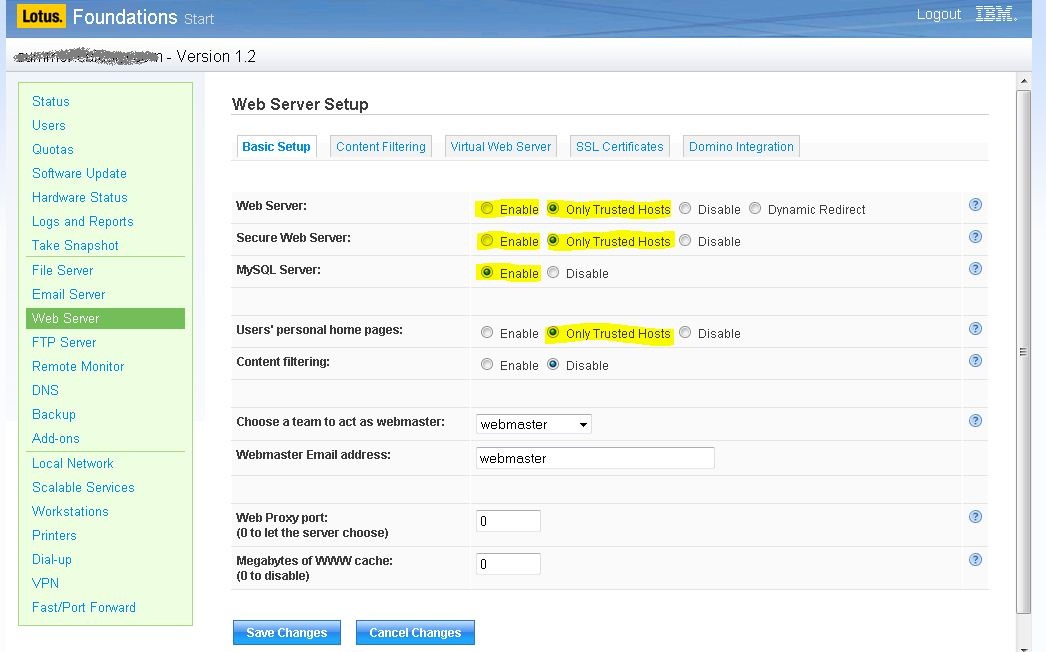

    Configure web server settings on Lotus Foundations

    Configure web server settings on Lotus Foundations

    Then, Click “Save Changes”

  13. Open the browser. and type “http://<Your IP Address >/~sugarcrm/”
    <Your IP Address> takes place with your ip address or host name of Lotus Foundations
  14. If you could see the web page like below, Congratulations!! You have just successfully installed SugarCRM CE 6.0 on Lotus Foundations

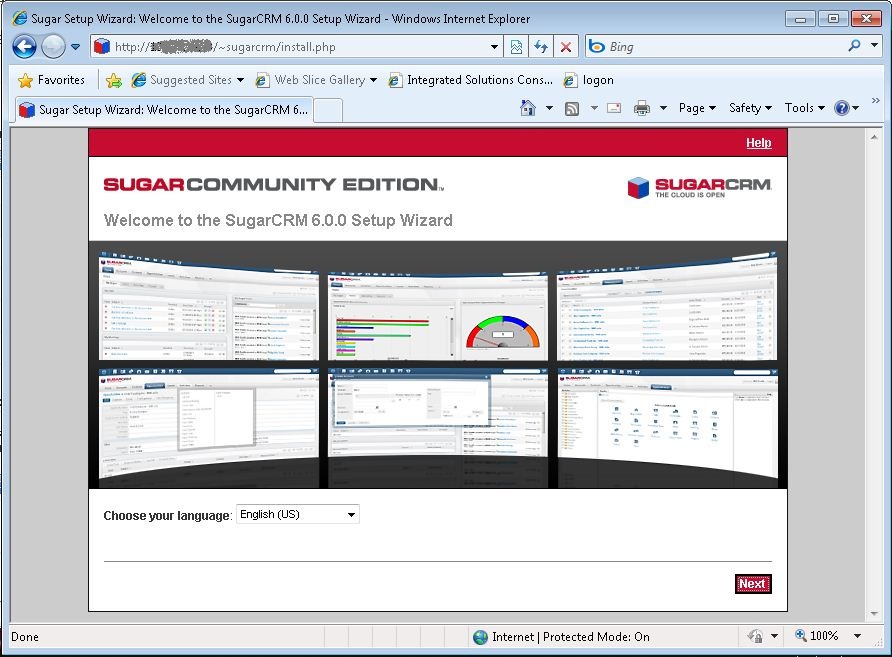

    First page of SugarCRM

    First page of SugarCRM


Now you can set up your SugarCRM with Setup Wizard. Please check here for Step by Step configuration of SugarCRM.

Tagged with: , , ,
2 comments on “SugarCRM install package for Lotus Foundations – Installation guide
  1. Brian Evans says:

    Hi. This was very useful.

    Thanks!

    I have a question though: what if I was to install this package on my LFS server in a team other than ‘sugarcrm’ ??

    Example; i want to run two separate instances of sugarcrm on my system, one called ABCcompany and the Other called 123Corporation.

  2. It’s great guide. I installed sugarCRM successfully. Thanks your sharing your great knowledge.
