SugarCRM install package for Lotus Foundations – SugarCRM Setup Wizard

Here we explain how to set up the SugarCRM CE 6.0.0 after installation of SugarCRM on Lotus Foundations finished.

If you have not yet installed SugarCRM on Lotus Foundations,

please go to here to download the install package

and

please check here for SugarCRM installation guide on Lotus Foundations server.

Also after all this setup wizard, you might want to check here for integration between SugarCRM and Lotus Foundations LDAP.


  1. Access to “http://<Your IP Address>/~sugarcrm/”
    <Your IP Address> take place with your ip address or host name of Lotus Foundations server.

    First page of SugarCRM

    First page of SugarCRM

    Choose your language, and then Click Next button.

  2. Click Next button

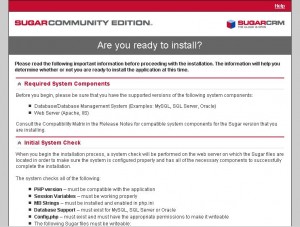

    Ready to set up SugarCRM?

    Ready to set up SugarCRM?

  3. After reading License Acceptance, check “I Accept” checkbox, and then Click Next button

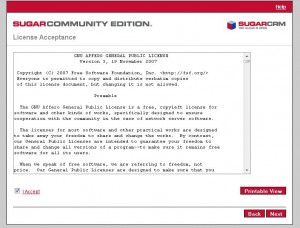

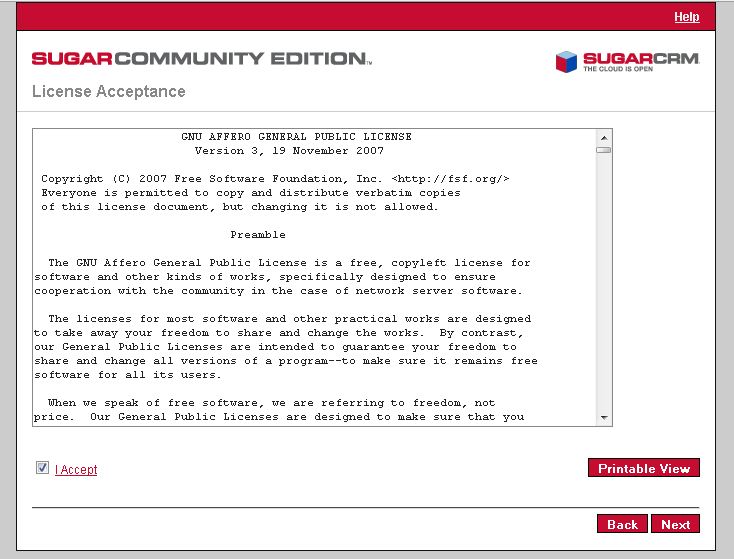

    Lisence agreement of SugarCRM

    Lisence agreement of SugarCRM

    If you got the warning message window like below,

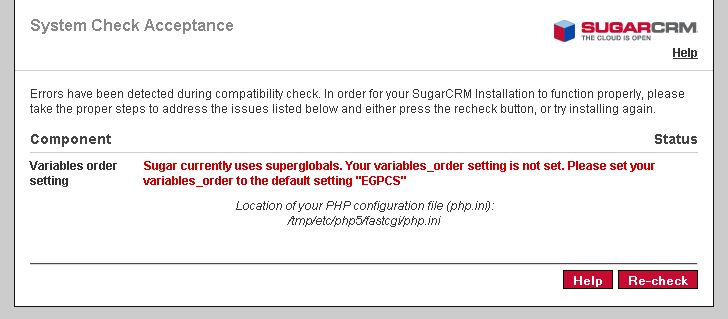

    System Check Acceptance

    System Check Acceptance

    Please check if “Web server” configuration of Lotus Foundation server is like below.
    Then restart “Web Server” and “Secure Web Server” by toggling the radio button status between [Enable] and [Disable] and save twice.
    Web Server: [Enable] or [Only Trusted Hotes]
    Secure Web Server: [Enable] or [Only Trusted Hotes]
    MySQL Server: [Enable]
    Users’ personal home pages: [Enable] or [Only Trusted Hotes]
    Content filtering: [Disable]

    Configure web server settings on Lotus Foundations

    Configure web server settings on Lotus Foundations

  4. For this setup wizard guide, simply select “Typical Install”, and then Click Next

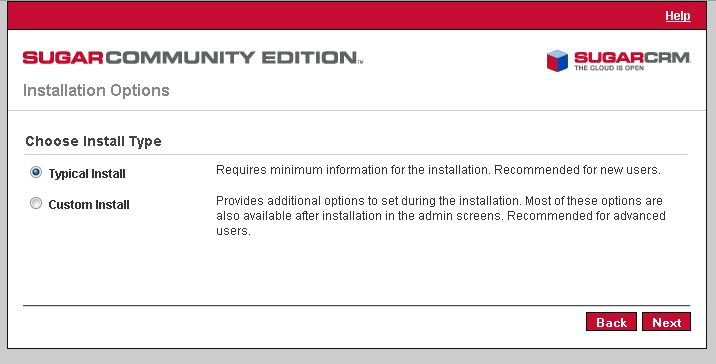

    Choose Install Type of SugarCRM

    Choose Install Type of SugarCRM

  5. Click Next

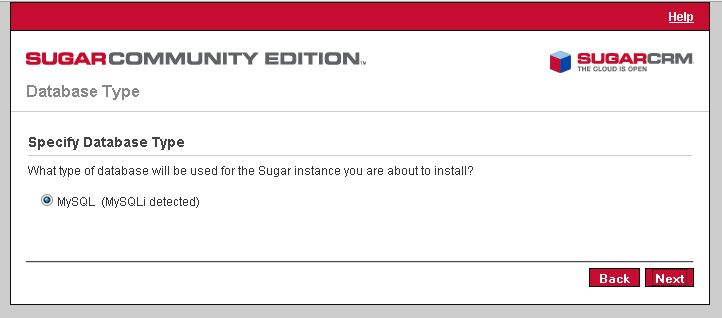

    SugarCRM Database Type

    SugarCRM Database Type

  6. Enter Database Administrator Username and Datbase Admin Password.

    Here simply enter Lotus Foundations “root” and root’s password

    Don’t need to change the default value of Database Name and Host Name if you are not familiar with this.

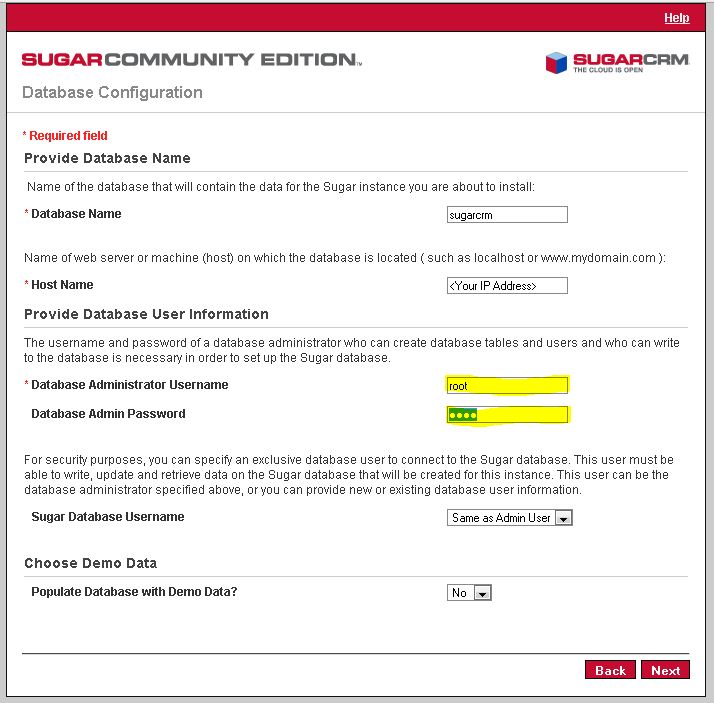

    Provide Database Name of SugarCRM

    Provide Database Name of SugarCRM

    Then, Click Next.

    After pop up the message regarding “Verifying DB Credentials”, Click “I Accept”

  7. Enter SugarCRM Administrator User name and password, Click Next

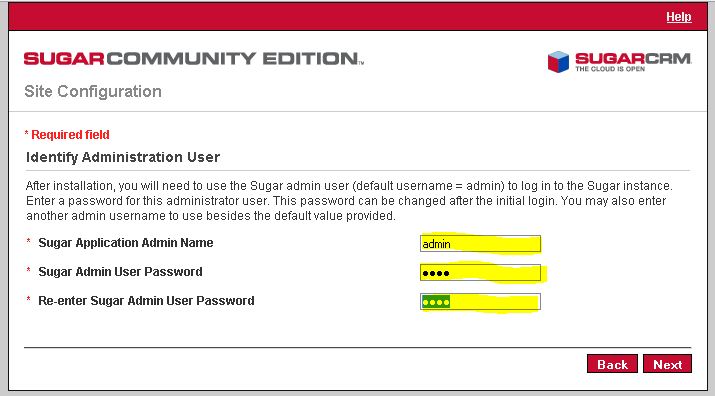

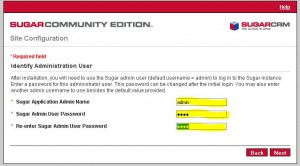

    Identify Administration User of SugarCRM

    Identify Administration User of SugarCRM

  8. Click Install

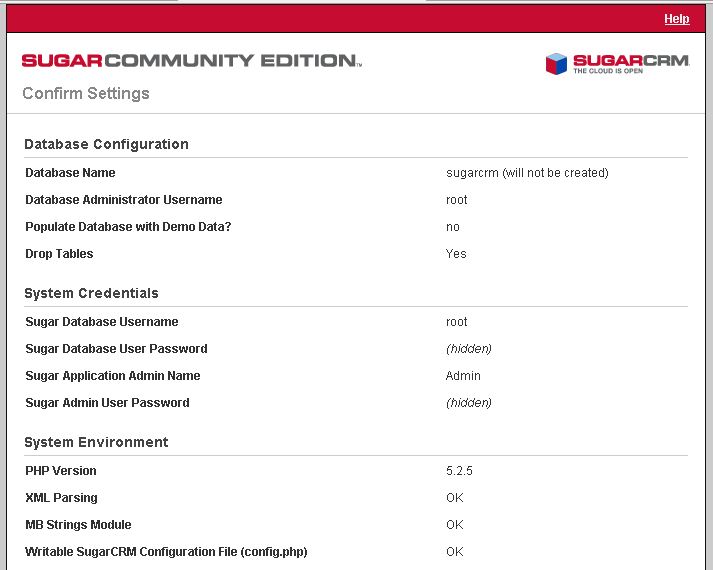

    Confirm Settings of SugarCRM

    Confirm Settings of SugarCRM

  9. Click Next

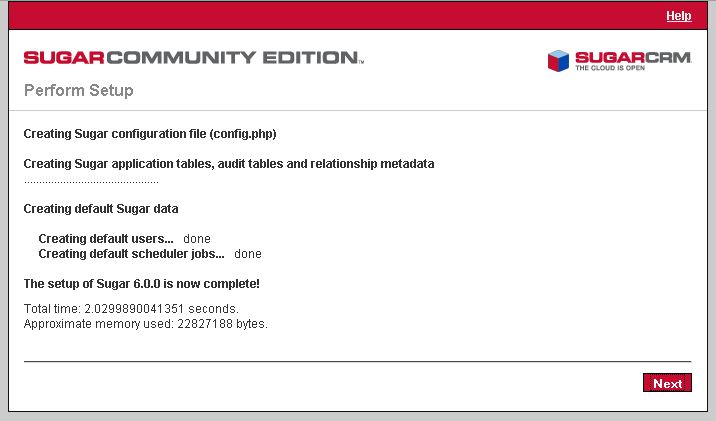

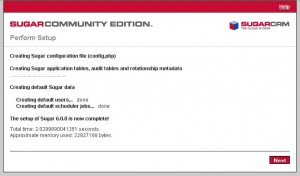

    Perform Setup of SugarCRM

    Perform Setup of SugarCRM

  10. Register your information. In our case, Just click Next because of demo.

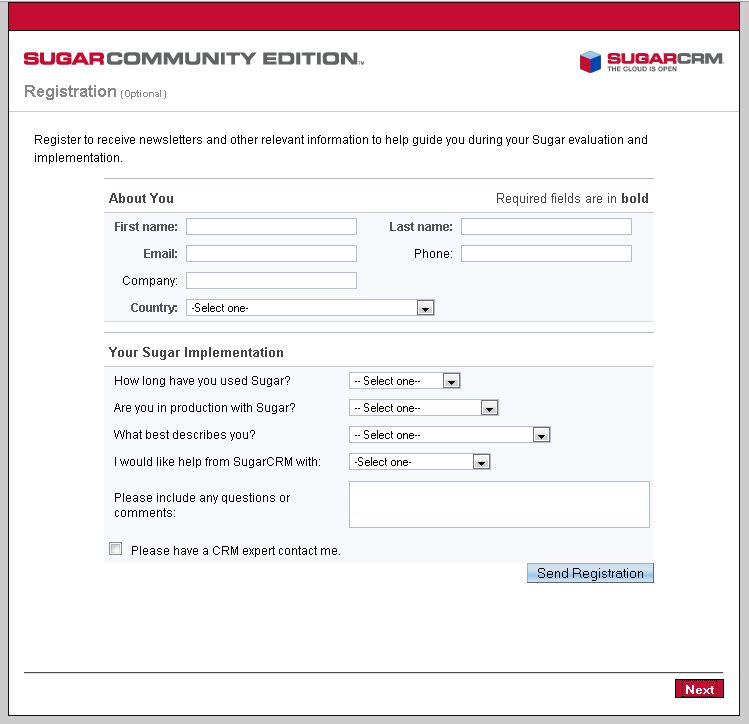

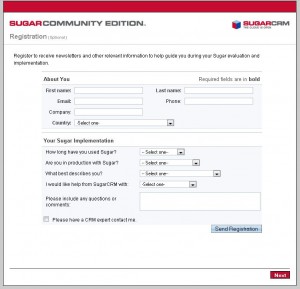

    Registration page of SugarCRM

    Registration page of SugarCRM

  11. Could you get the web page below? Congratulations!! SugarCRM setup is done!

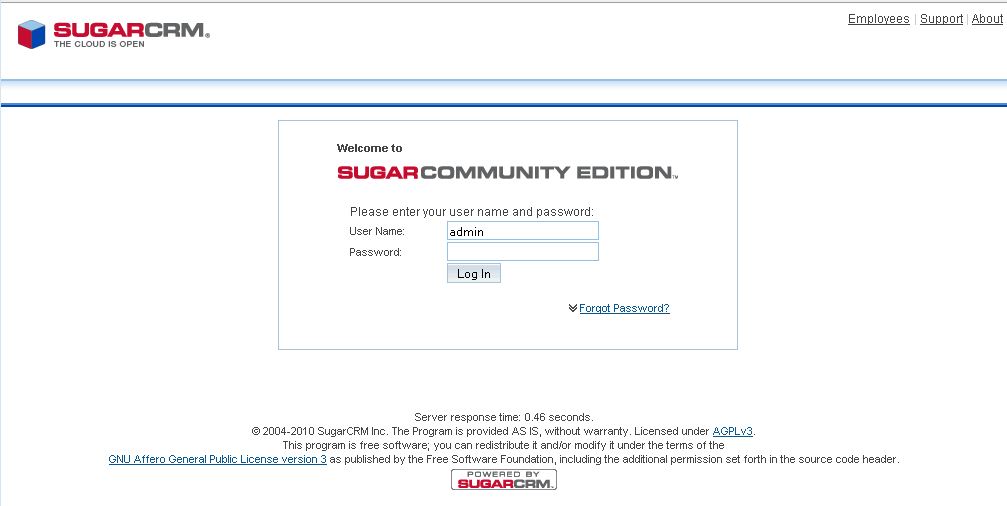

    SugarCRM login page

    SugarCRM login page

    Now you can login as administrator which you created in step 7.


Enjoy your SugarCRM on Lotus Foundations!

Do you want to integrate SugarCRM with Lotus Foundations LDAP account?

It is very simple! Please check here for LDAP integration configuration.
